Power Distribution Transformers

Name: Power Distribution Transformers
Brand: NGG POWER TECH INDIA PRIVATE LIMITED
Price: 508700.00 INR
Availability: InStock

508700.00 INR/Unit

Get a Price/Quote

Product Details:

Rated Voltage 11 kV / 22 kV / 33 kV
Dimension (L*W*H) Custom (example: 1700x1100x1250 mm for 630 kVA)
Voltage Booster Type Tap Changer (On-Load/Off-Load)
Low Voltage 415 V / 433 V
Capacity Distribution range 25 kVA - 2500 kVA
Cooling Type ONAN (Oil Natural Air Natural)
High Voltage 11 kV / 22 kV / 33 kV
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Power Distribution Transformers Price And Quantity

Minimum Order Quantity 1 Unit
Price 508700.00 INR/Unit

Impedance Voltage Approx. 4.5% at rated load
Cooling Medium Mineral oil filled
Shock Resistance Designed for seismic zone 4
Paint Finish Epoxy/polyurethane coating for outdoor/indoor use
Regulation Less than 5% at full load
Core Type CRGO laminated core
Insulation Class Class A or F
Standards IS 1180 / IEC 60076 / BIS certified
No Load Loss As per IS 1180 & IEC standards
Enclosure Protection IP23/IP24
Noise Level <55 dB at 1 meter
Mounting Type Base channel / wheels
Tap Range +/- 5% in steps of 2.5%
Accessories Oil level indicator, temperature gauge, Buchholz relay, pressure relief device
Termination Type Cable box/bushing as required

Power Distribution Transformers Product Specifications

Operating Temperature -10C to +50C
Dimension (L*W*H) Custom (example: 1700x1100x1250 mm for 630 kVA)
Voltage Booster Type Tap Changer (On-Load/Off-Load)
Coil Material Copper / Aluminum
Efficiency 98% - 99%
Frequency (MHz) 50 Hz
Power Scope Upto 2.5 MVA
Rated Voltage 11 kV / 22 kV / 33 kV
Product Type Power Distribution Transformer
Phase Three Phase
High Voltage 11 kV / 22 kV / 33 kV
Material Copper / Aluminum
Load Loss As per IS: 2026 Standards
Cooling Type ONAN (Oil Natural Air Natural)
Usage Electrical Power Distribution
Coil Number Single / Multiple
Output Variable depending on rating
Coil Structure Toroidal / Layer Wound
Capacity Distribution range 25 kVA - 2500 kVA
Weight Varies by capacity (approx 650-1800 kg)
Low Voltage 415 V / 433 V

Impedance Voltage Approx. 4.5% at rated load
Cooling Medium Mineral oil filled
Shock Resistance Designed for seismic zone 4
Paint Finish Epoxy/polyurethane coating for outdoor/indoor use
Regulation Less than 5% at full load
Core Type CRGO laminated core
Insulation Class Class A or F
Standards IS 1180 / IEC 60076 / BIS certified
No Load Loss As per IS 1180 & IEC standards
Enclosure Protection IP23/IP24
Noise Level <55 dB at 1 meter
Mounting Type Base channel / wheels
Tap Range +/- 5% in steps of 2.5%
Accessories Oil level indicator, temperature gauge, Buchholz relay, pressure relief device
Termination Type Cable box/bushing as required

Power Distribution Transformers Trade Information

Supply Ability 500 Unit Per Month
Delivery Time 30 Days

Product Description

We are counted as one of the renowned manufacturers and suppliers of Power Distribution Transformers. Our range of products is manufactured using high-grade steel procured from the trustworthy vendors of the market. To meet the variegated demands of our clients, our range is checked on various parameters to ensure its optimum performance & quality. These transformers are known for their various attributes like sturdy construction and easy usage. The Power Distribution Transformers are widely used top meet various industrial and commercial purposes.

Product Details

Voltage Ratio	11kV/433V
Phase	3-Phase
Cooling Type	Oil Cooled
Power Rating	400kVA
Country of Origin	Made in India
Winding Material	Mild Steel

High-Efficiency Power Distribution

Designed for varied industrial and commercial utility, these transformers deliver efficiency rates between 98% and 99%, minimizing energy loss and maximizing output. Their superior regulation (<5% at full load) ensures a stable voltage profile, while compliance with stringent IS and IEC standards guarantees reliability and safety. The use of high-quality copper or aluminum windings promotes longevity and performance consistency.

Robust Construction and Versatile Installation

Robustly built with IP23/IP24-protected enclosures and seismic zone 4 resistance, these transformers are suitable for both harsh outdoor and controlled indoor environments. Multiple mounting configurationsbase channels or wheelsand termination styles (cable box/bushing) allow flexible integration into various setups. Each unit is finished with durable epoxy or polyurethane coatings to withstand environmental wear.

Advanced Features and Accessories

Equipped with key operational accessories such as oil level indicators, Buchholz relays, temperature gauges, and pressure relief devices, these transformers enable efficient monitoring and maintenance. Tap changers offer 5% adjustment in 2.5% steps, supporting optimal voltage regulation in dynamic grid conditions. Cooling is provided via ONAN (Oil Natural Air Natural) systems, enhancing performance and thermal stability.

FAQs of Power Distribution Transformers:

Q: How do power distribution transformers optimize voltage regulation in electrical grids?

A: These transformers maintain voltage levels close to the ideal range with voltage regulation of less than 5% at full load. The inclusion of tap changers with a +5% to -5% adjustment range (in 2.5% steps) allows for precise tuning, ensuring stability and reliability for downstream equipment.

Q: What standards and certifications are the transformers manufactured to meet?

A: The transformers comply with IS 1180, IEC 60076, and BIS certification standards, ensuring quality, safety, and compatibility with both Indian and international grid requirements.

Q: When should I select a transformer with Class A or F insulation?

A: Class A insulation is suitable for conventional temperature environments, while Class F offers enhanced thermal resistance for higher ambient temperatures or heavier duty cycles, supporting operation in temperatures from -10C to +50C.

Q: Where can these transformers be installed for best performance?

A: Thanks to their IP23/IP24 enclosure protection, seismic zone 4 shock resistance, and corrosion-resistant paint, these transformers are suitable for both outdoor and indoor installations across diverse environmental conditions.

Q: What is the process for monitoring and maintaining transformer health?

A: Routine checks are simplified with integrated accessories: oil level indicators, temperature gauges, Buchholz relays, and pressure relief devices. These features help monitor operating conditions and provide safety mechanisms against faults or abnormal operation.

Q: How does the cooling system work in these transformers?

A: Each unit uses ONAN (Oil Natural Air Natural) cooling, where natural oil and air circulation efficiently dissipate heat generated during operation, ensuring safe and stable transformer performance even at high loads and in various ambient temperatures.

Q: What are the main benefits of using these power distribution transformers?

A: They deliver high efficiency (up to 99%), robust protection against environmental and seismic risks, flexible customization for ratings up to 2.5 MVA, and easy integration, supporting reliable, long-term electrical power distribution in commercial, industrial, or infrastructure projects.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Distribution Transformers' category

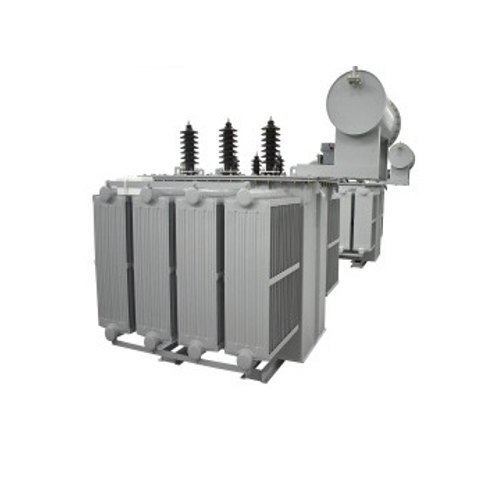

5MVA Distribution Transformer Price : 6700000.00 INR/Unit Minimum Order Quantity : 1 Low Voltage : 433 V Weight : Approximately 11000 kg Capacity : 5000 kVA Coil Structure : Laminated Core Output : 5000 kVA Usage : Electrical Power Distribution Coil Number : Other, 2 (Primary & Secondary) Cooling Type : ONAN (Oil Natural Air Natural) Load Loss : 11,500 W Material : HighGrade Silicon Steel & Copper High Voltage : 11000 V Phase : Three Phase Rated Voltage : 11/0.433 kV Product Type : Other, OilImmersed Distribution Transformer Power Scope : 5 MVA Frequency (MHz) : 50 Hz Efficiency : 98% Coil Material : Other , Electrolytic Copper Voltage Booster Type : Other, Tap Changer (On Load/Off Load) Dimension (L*W*H) : 3500 x 1700 x 2200 mm Operating Temperature : 20C to +45C
