5MVA Distribution Transformer

Name: 5MVA Distribution Transformer
Brand: NGG POWER TECH INDIA PRIVATE LIMITED
Price: 6700000.00 INR
Availability: InStock

6700000.00 INR/Unit

Get a Price/Quote

Product Details:

Load Loss 11,500 W
Capacity 5000 kVA
Rated Voltage 11/0.433 kV
Cooling Type ONAN (Oil Natural Air Natural)
Coil Material Electrolytic Copper
Operating Temperature -20C to +45C
High Voltage 11000 V
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

5MVA Distribution Transformer Price And Quantity

Price 6700000.00 INR/Unit
Minimum Order Quantity 1 Unit

Standard IS-1180 (Part-I), IEC 60076
Sound Level <60 dB at 1 meter
Core Type Core type, stacked
Winding Connection Star / Delta
Protection Class IP54
Mounting Type Pad / Plinth-mounted
No Load Loss <1900 W
Cooling Medium Mineral Oil
Altitude Up to 1000 m above sea level
Insulation Class Class A / F
Impedance Voltage 6.25%
Vector Group Dyn11

5MVA Distribution Transformer Product Specifications

Rated Voltage 11/0.433 kV
Cooling Type ONAN (Oil Natural Air Natural)
Product Type Oil-Immersed Distribution Transformer
Efficiency >98%
Coil Material Electrolytic Copper
Frequency (MHz) 50 Hz
Coil Number 2 (Primary & Secondary)
Output 5000 kVA
Low Voltage 433 V
Weight Approximately 11000 kg
Power Scope 5 MVA
Capacity 5000 kVA
Material High-Grade Silicon Steel & Copper
Dimension (L*W*H) 3500 x 1700 x 2200 mm
Load Loss 11,500 W
Voltage Booster Type Tap Changer (On Load/Off Load)
Phase Three Phase
High Voltage 11000 V
Operating Temperature -20C to +45C
Usage Electrical Power Distribution
Coil Structure Laminated Core

Standard IS-1180 (Part-I), IEC 60076
Sound Level <60 dB at 1 meter
Core Type Core type, stacked
Winding Connection Star / Delta
Protection Class IP54
Mounting Type Pad / Plinth-mounted
No Load Loss <1900 W
Cooling Medium Mineral Oil
Altitude Up to 1000 m above sea level
Insulation Class Class A / F
Impedance Voltage 6.25%
Vector Group Dyn11

5MVA Distribution Transformer Trade Information

Supply Ability 500 Unit Per Month
Delivery Time 30 Days

Product Description

With the continuous support of our capable professionals, we are involved in supplying and exporting 5MVA Distribution Transformer. These transformers are used are used for converting low voltage alternate current to high voltage alternate current. Our vendors develop these transformers under the guidance of electrical engineers in accordance with international norms and standards. Offered 5MVA Distribution Transformers are checked thoroughly as per different parameters, to ascertain efficient and flawless transmission of electricity.

Product Details

Minimum Order Quantity	1 Piece
Voltage Ratio	33kV/11V
Phase	3-Phase
Cooling Type	Oil Cooled
Frequency	50-60Hz
Winding Material	Mild Steel
Power Rating	5MVA
Country of Origin	Made in India

Exceptional Efficiency and Reliable Operation

With more than 98% efficiency and robust construction using electrolytic copper and silicon steel, this transformer significantly reduces energy losses during distribution. Its carefully engineered core and windings ensure minimal no-load ( <1900 W) and load losses (11,500 W), providing operational cost savings and sustained reliability even under demanding load conditions.

Certified for Safety and Durability

Adhering to IS-1180 (Part-I) and IEC 60076 standards, this distribution transformer offers enhanced safety with IP54 protection and ONAN cooling using mineral oil. The Class A/F insulation withstands harsh climates between -20C to +45C, making it ideal for various installations across India and similar regions. Its construction facilitates easy mounting on plinths or pads, catering to diverse site requirements.

Versatile Applications Across Power Networks

Engineered for use in three-phase electrical distribution systems, this transformer fits perfectly in industrial, commercial, and utility substations. The Dyn11 vector group supports stable grid operations, while tap changers (on load/off load) allow precise voltage regulation during fluctuations, promoting efficient and continuous power delivery to end users.

FAQs of 5MVA Distribution Transformer:

Q: How is the 5MVA Distribution Transformer installed?

A: The transformer can be mounted on either a pad or plinth foundation, depending on site conditions. Its robust design and dimensions (3500 x 1700 x 2200 mm) ensure stable operation, while the core type stacked construction facilitates secure installation by qualified professionals.

Q: What benefits does the Dyn11 vector group offer in this transformer?

A: The Dyn11 vector group enables effective management of unbalanced loads, providing enhanced phase separation and minimizing neutral shifts. This makes the transformer ideal for complex distribution networks requiring stable and reliable power supply.

Q: When should I use the tap changer feature, and how does it work?

A: Tap changersavailable as either on-load or off-load optionsshould be used when voltage regulation is required due to grid fluctuations or changing load demands. They allow for adjustment of the output voltage to maintain stable supply without interrupting transformer operation, ensuring consistent performance.

Q: Where can this transformer be deployed considering environmental factors?

A: With an operating altitude of up to 1000 meters and a temperature range from -20C to +45C, the transformer is suitable for diverse environments across India, including industrial parks, commercial complexes, and utility substations.

Q: What materials are used in constructing the 5MVA transformer, and why?

A: High-grade silicon steel and electrolytic copper are used for the core and windings, respectively. These materials provide excellent electrical conductivity and magnetic properties, maximizing efficiency and reducing operating losses.

Q: How does the ONAN cooling system benefit transformer operation?

A: ONAN (Oil Natural Air Natural) cooling utilizes mineral oil for heat dissipation and natural air circulation, preventing overheating and extending transformer life. This process requires minimal maintenance and is energy efficient, making it suitable for continuous use.

Q: What is the process for maintenance and regular inspection?

A: Routine maintenance involves checking oil levels, inspecting for leaks, monitoring sound levels (<60 dB), and verifying that operational parameters meet standards. Annual inspections by certified engineers ensure safe and efficient performance over the lifespan of the transformer.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Distribution Transformers' category

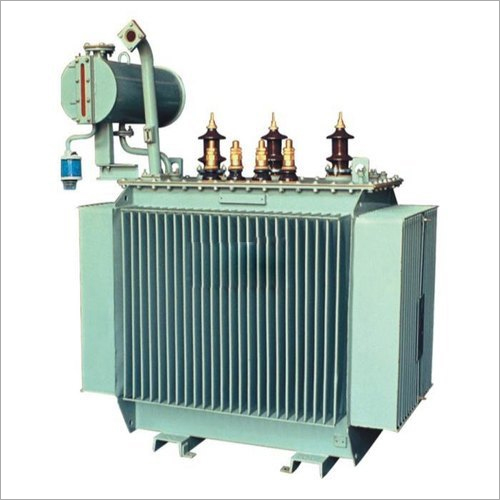

250 KVA Three Phase Oil Cooled Distribution Transformer Price : 362500.00 INR/Unit Minimum Order Quantity : 1 High Voltage : 11000 V Phase : Three Phase Coil Structure : Other, Double Wound Usage : Distribution of electrical power Operating Temperature : 25C to +50C Dimension (L*W*H) : 1600 mm x 900 mm x 1600 mm Voltage Booster Type : Other, Conventional Load Loss : 1800 W Capacity : 250 KVA Power Scope : 250 KVA Material : Copper windings, CRGO silicon steel core Coil Material : Other , Copper Frequency (MHz) : 50 Hz Efficiency : 98% Product Type : Other, Oil Cooled Distribution Transformer Cooling Type : Oil Cooled Rated Voltage : 11 kV / 0.433 kV Low Voltage : 433 V Weight : Approx. 1500 kg Output : 250 KVA Coil Number : Other, 2

Send Inquiry

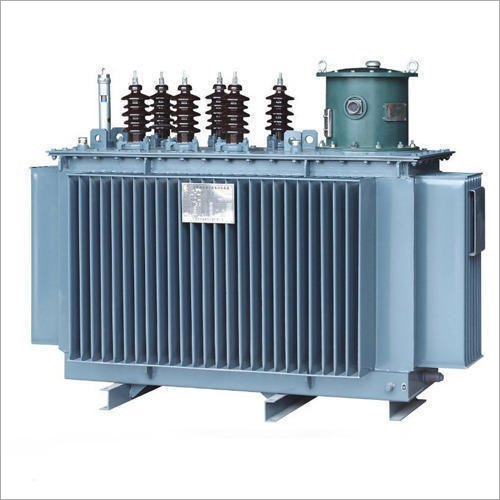

Power Distribution Transformers Price : 508700.00 INR/Unit Minimum Order Quantity : 1 High Voltage : 11 kV / 22 kV / 33 kV Phase : Three Phase Coil Structure : Other, Toroidal / Layer Wound Usage : Electrical Power Distribution Operating Temperature : 10C to +50C Dimension (L*W*H) : Custom (example: 1700x1100x1250 mm for 630 kVA) Voltage Booster Type : Other, Tap Changer (OnLoad/OffLoad) Load Loss : As per IS: 2026 Standards Capacity : Distribution range 25 kVA 2500 kVA Power Scope : Upto 2.5 MVA Material : Copper / Aluminum Coil Material : Other , Copper / Aluminum Frequency (MHz) : 50 Hz Efficiency : 98% 99% Product Type : Other, Power Distribution Transformer Cooling Type : ONAN (Oil Natural Air Natural) Rated Voltage : 11 kV / 22 kV / 33 kV Low Voltage : 415 V / 433 V Weight : Varies by capacity (approx 6501800 kg) Output : Variable depending on rating Coil Number : Other, Single / Multiple

Send Inquiry

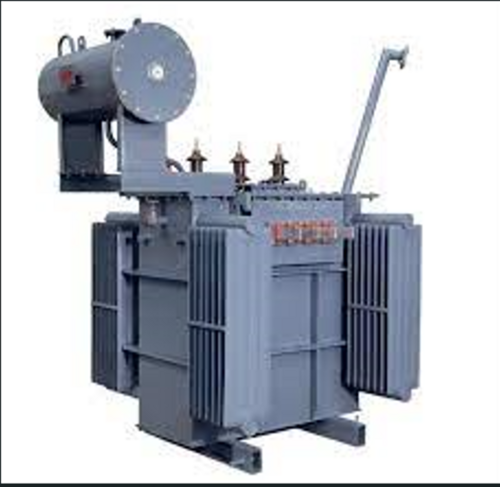

630 KVA OLTC Distribution Transformer Price : 1093700.00 INR/Unit Minimum Order Quantity : 1 High Voltage : 11 kV Phase : Three Phase Coil Structure : Toroidal Usage : Power Distribution Operating Temperature : 20C to +50C Dimension (L*W*H) : 2100 mm x 1360 mm x 1670 mm Voltage Booster Type : Other, OLTC (On Load Tap Changer) Load Loss : 4560 W Capacity : 630 kVA Power Scope : 630 kVA Material : Copper/CRGO Silicon Steel Coil Material : Other , Electrolytic Copper Frequency (MHz) : 50 Hz Efficiency : 98.5% Product Type : Other, OLTC Distribution Transformer Cooling Type : ONAN (Oil Natural Air Natural) Rated Voltage : 11 kV/433 V Low Voltage : 433 V Weight : Approx. 2200 kg Output : 630 kVA Coil Number : Double Winding

Send Inquiry

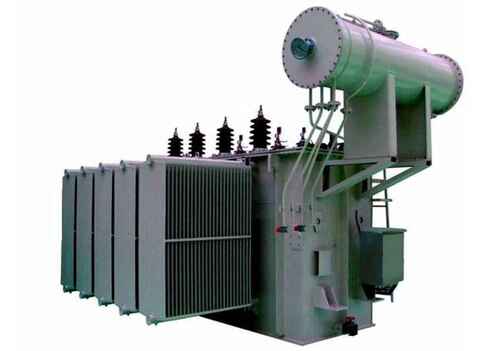

Oil Filled Distribution Transformer Price : 16050000.00 INR/Unit Minimum Order Quantity : 1 High Voltage : 11 kV/22 kV/33 kV Phase : Three Phase Coil Structure : Other, Double Winding Usage : Power Distribution Operating Temperature : Upto 50C Dimension (L*W*H) : Customized as per rating Voltage Booster Type : Other, Tap Changer (Manual/Automatic) Load Loss : Conforms to IS 2026/1180 Standard Capacity : 16 kVA to 2500 kVA Power Scope : Up to 2500 kVA Material : High Grade CRGO Silicon Steel, Copper Winding Coil Material : Other , Pure Copper Frequency (MHz) : 50 Hz Efficiency : Above 98% Product Type : Other, Oil Filled Distribution Transformer Cooling Type : ONAN (Oil Natural Air Natural) Rated Voltage : 11 kV/22 kV/33 kV Low Voltage : 433 V Weight : Varies as per rating, approximately 900 kg to 3000 kg Output : Customized as per requirement Coil Number : Other, Two (Primary and Secondary)
