High Power Transformer

Name: High Power Transformer
Brand: NGG POWER TECH INDIA PRIVATE LIMITED
Price: 3069233.00 INR
Availability: InStock

3069233.00 INR/Unit

Get a Price/Quote

Product Details:

Operating Temperature -25C to 105C
Low Voltage 400 V / 11000 V / as per custom
Capacity 500 kVA to 200 MVA
Dimension (L*W*H) Customized (Example: 4000mm x 2500mm x 4000mm)
Load Loss Complies with IEC standards
Cooling Type ONAN, ONAF, OFAF, ODAF
Coil Material High-grade Copper
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High Power Transformer Price And Quantity

Minimum Order Quantity 1 Unit
Price 3069233.00 INR/Unit

Protection Class IP54 / IP55
Core Construction Laminate, Stack Construction
Temperature Rise Oil: <50 K, Winding: <55 K above ambient
Insulation Class Class A / B / F as per requirement
Accessories Conservator, Buchholz Relay, Magnetic Oil Level Gauge, Pressure Relief Device
Color/Finish Industrial Grade Epoxy Painted
Tap Changer Off-circuit/ On Load
Mounting Type Floor Mounted
Overload Capability Short time overload permissible as per standards
Noise Level < 60 dB at 1 meter
Bushing Type Porcelain/Oil-filled
Impulse Withstand Voltage As per IEC/IS standards (e.g., 750 kV peak)
Winding Connection Delta/Star (Dyn11 or as specified)
Service Life >25 years with proper maintenance

High Power Transformer Product Specifications

Cooling Type ONAN, ONAF, OFAF, ODAF
Usage Industrial/Power Distribution
Coil Structure Toroidal / Layer Wound
Voltage Booster Type Step-up/Step-down
Frequency (MHz) 50/60 Hz
Power Scope Upto 200 MVA
Load Loss Complies with IEC standards
Rated Voltage Up to 220 kV
Capacity 500 kVA to 200 MVA
High Voltage Up to 220,000 V
Coil Number Double Winding
Output Customized as per requirement
Material Copper and Silicon Steel
Dimension (L*W*H) Customized (Example: 4000mm x 2500mm x 4000mm)
Low Voltage 400 V / 11000 V / as per custom
Efficiency Above 98%
Coil Material High-grade Copper
Operating Temperature -25C to 105C
Weight Varies as per capacity (e.g. 8 - 65 Tons)
Phase Three Phase
Product Type High Power Transformer

Protection Class IP54 / IP55
Core Construction Laminate, Stack Construction
Temperature Rise Oil: <50 K, Winding: <55 K above ambient
Insulation Class Class A / B / F as per requirement
Accessories Conservator, Buchholz Relay, Magnetic Oil Level Gauge, Pressure Relief Device
Color/Finish Industrial Grade Epoxy Painted
Tap Changer Off-circuit/ On Load
Mounting Type Floor Mounted
Overload Capability Short time overload permissible as per standards
Noise Level < 60 dB at 1 meter
Bushing Type Porcelain/Oil-filled
Impulse Withstand Voltage As per IEC/IS standards (e.g., 750 kV peak)
Winding Connection Delta/Star (Dyn11 or as specified)
Service Life >25 years with proper maintenance

High Power Transformer Trade Information

Supply Ability 500 Unit Per Month
Delivery Time 30 Days

Product Description

The High Power Transformer is used for providing electricity supply in various residential and commercial areas. They are manufactured with excellent quality materials and are easy to install, maintain and handle. These transformers are known for their robust construction, easy to operate and less maintenance properties. The High Power Transformer have different wages of operations which allocates the transformation of the current. Further, it is has been admired by the clients for their quality, durability, and operating capability.

Product Details

Winding Material	Copper
Brand	NGG Power Tech India Pvt Ltd
Usage/Application	Industrial
Phase	Single Phase
Cooling Type	Dry Type/Air Cooled
Power	1500 KVA
Input Voltage	33/11 kV
Material	Mild Steel

Engineered for Performance & Reliability

Our transformers combine premium copper windings, silicon steel laminations, and industrial-grade epoxy coatings to ensure peak reliability and efficiency. With optimized noise reduction (<60 dB) and strict adherence to IEC/IS standards, they provide dependable performance, even under demanding operational conditions.

Flexible Customization & Mounting

Available in output and dimension customizations, these floor-mounted transformers suit a range of installations. Choose between step-up or step-down voltage boosters, a variety of winding connections (Delta/Star), and multiple cooling systems for tailored solutions. IP54/IP55 enclosure ratings offer dependable protection against dust and moisture.

Extended Service Life & Low Maintenance

Built with quality materials and engineered for minimal load losses, these transformers are designed for a service life exceeding 25 years with regular upkeep. Accessories like Buchholz relays and magnetic oil level gauges enable preventative maintenance, reducing downtime and operational costs.

FAQs of High Power Transformer:

Q: How is the high power transformer installed and what mounting options are available?

A: This transformer is designed for floor-mounted installation, making it suitable for various industrial and power distribution environments. Installation should be performed by qualified professionals to ensure safety, correct alignment, and optimal performance.

Q: What are the main benefits of the transformers insulation and protection classes?

A: With insulation classes A, B, or F, and protection ratings of IP54/IP55, the transformer offers high thermal stability and robust defense against dust and water ingress. This ensures greater operational reliability, even in harsh or humid industrial settings.

Q: How is noise controlled in this transformer?

A: The transformer is engineered to maintain noise levels below 60 dB at a one-meter distance, thanks to innovative design features and laminated core construction. This makes it suitable for facilities where noise control is essential.

Q: What accessories are included and how do they enhance transformer operations?

A: Key accessories include a conservator, Buchholz relay, magnetic oil level gauge, and pressure relief device. These components improve safety, enable real-time monitoring, and assist in proactive maintenance for reliable, long-term operation.

Q: When is overload capability utilized, and how is it managed?

A: Short time overloads are permissible as per IEC/IS standards, making the transformer capable of handling temporary surges in load. Overload events are managed without compromising the service life, provided operations follow prescribed limits and maintenance schedules.

Q: What is the typical service life of this transformer, and how can it be extended?

A: With high-grade copper, silicon steel, and proper maintenanceincluding regular inspections and timely servicingthe transformers service life can exceed 25 years, providing outstanding long-term value for industrial users.

Q: Where can this transformer be deployed and what customization options are available?

A: This transformer is ideal for industrial and power distribution applications. It supports a range of voltage and power capacities, output customizations, various cooling types, and diverse winding and coil configurations, making it adaptable to customer-specific requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Power Transformers' category

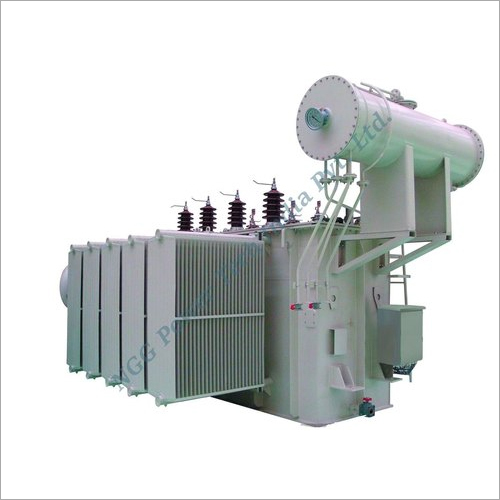

12.5 MVA Current Power Transformer Price : 12740000.00 INR/Unit Minimum Order Quantity : 1 Phase : Three Phase Product Type : Other, OilImmersed Power Transformer Weight : Approx. 29,600 kg Coil Material : Other , High Conductivity Copper Operating Temperature : 25C to +45C Low Voltage : 11,000 V Efficiency : Up to 99.3% Capacity : 12,500 kVA Material : Copper, Silicon Steel, Highgrade Insulation Coil Number : Other, Multiple Winding Coils Output : 12.5 MVA Continuous Rated Dimension (L*W*H) : Approx. 4200 mm x 2200 mm x 2800 mm High Voltage : 33,000 V Rated Voltage : 33 kV / 11 kV Load Loss : Approx. 45 kW Frequency (MHz) : 50 Hz Voltage Booster Type : Other, Tap Changer Equipped Power Scope : 12.5 MVA Coil Structure : Other, Layer Winding Usage : Electrical Power Transmission Cooling Type : ONAN (Oil Natural Air Natural)

Send Inquiry

500 kVA Electrical Power Transformer Price : 749000.00 INR/Unit Minimum Order Quantity : 1 Phase : Three Phase Product Type : Other, Power Transformer Weight : Approx. 2500 kg Coil Material : Other , Copper Operating Temperature : 25C to 50C Low Voltage : 433 V Efficiency : 98% Capacity : 500 kVA Material : Highgrade Silicon Steel, Copper Windings Coil Number : Other, Three Output : 500 kVA Dimension (L*W*H) : 2000 mm x 1100 mm x 1700 mm High Voltage : 11000 V Rated Voltage : 11 kV Load Loss : 4000 W Frequency (MHz) : 50 Hz Voltage Booster Type : Other, Automatic Power Scope : 500 kVA Coil Structure : Other, Toroidal/Oval Core Usage : Electrical Power Distribution Cooling Type : ONAN (Oil Natural Air Natural)

Send Inquiry

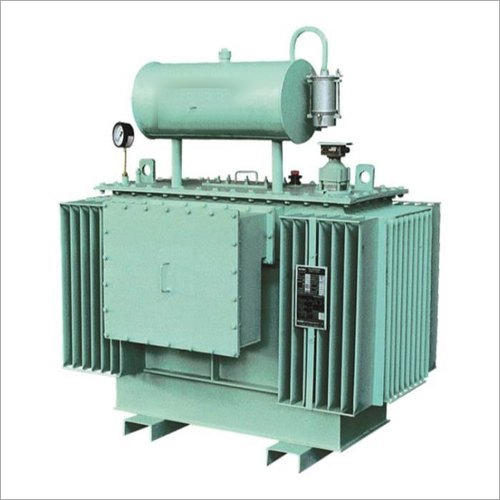

315 KVA Power Distribution Transformers Price : 450000.00 INR/Unit Minimum Order Quantity : 1 Phase : Three Phase Product Type : Other, Oil Cooled Power Distribution Transformer Weight : Approx. 1200 kg Coil Material : Other , Electrolytic Copper Operating Temperature : 25C to +45C Low Voltage : 433 V Efficiency : 98.5% (Approx) Capacity : 315 KVA Material : Copper Core, CRGO Lamination, Mild Steel Tank Coil Number : Double Winding Output : 315 KVA Dimension (L*W*H) : 1400 mm x 950 mm x 1300 mm (Approx) High Voltage : 11,000 V Rated Voltage : 11 kV / 0.433 kV Load Loss : 2050 W (at full load) Frequency (MHz) : 50 Hz Voltage Booster Type : Other, Tap Changer (Off Circuit) Power Scope : 315 KVA Coil Structure : Other, Toroidal / Layer Wound Usage : Power Distribution Cooling Type : ONAN (Oil Natural Air Natural)
