Dry Type Transformer

Name: Dry Type Transformer
Brand: NGG POWER TECH INDIA PRIVATE LIMITED
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Capacity 100 kVA to 2500 kVA
Load Loss 780 W (at rated capacity)
Dimension (L*W*H) 1250 mm x 850 mm x 1450 mm (approx.)
Operating Temperature -25C to +50C
Rated Voltage 11 kV / 0.433 kV
Cooling Type Air Cooled (AN/AF)
Coil Material Copper / Aluminium
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Dry Type Transformer Price And Quantity

Price 25000 INR/Unit
Minimum Order Quantity 1 Unit

Tap Changer Off-circuit or On-load tap changer (OLTC) optional
Standard IS 11171 / IEC 60076
Mounting Type Floor Standing
Temperature Rise 60C (winding), 100C (hotspot max)
Surge Withstand Capability Compliant with IEC requirements
Short Circuit Impedance 4% - 6%
Dielectric Strength As per IS/IEC standards
Degree of Protection IP23 / IP44
Service Location Indoor / Outdoor
Core Type CRGO silicon steel, three-limb construction
Noise Level <60 dB at 1 meter
Winding Insulation Class Class F / Class H

Dry Type Transformer Product Specifications

Product Type Dry Type Transformer
Coil Structure Toroidal
Frequency (MHz) 50/60 Hz
Usage Electrical power distribution and industrial applications
Capacity 100 kVA to 2500 kVA
High Voltage 11 kV
Power Scope Up to 2500 kVA
Load Loss 780 W (at rated capacity)
Low Voltage 0.433 kV
Dimension (L*W*H) 1250 mm x 850 mm x 1450 mm (approx.)
Weight 1500 kg (subject to rating)
Coil Number Double Winding
Phase Three Phase
Operating Temperature -25C to +50C
Rated Voltage 11 kV / 0.433 kV
Voltage Booster Type Step Down
Coil Material Copper / Aluminium
Material High-grade Silicon Steel and Copper/Aluminum windings
Output Customized as per requirement
Cooling Type Air Cooled (AN/AF)
Efficiency 98%

Tap Changer Off-circuit or On-load tap changer (OLTC) optional
Standard IS 11171 / IEC 60076
Mounting Type Floor Standing
Temperature Rise 60C (winding), 100C (hotspot max)
Surge Withstand Capability Compliant with IEC requirements
Short Circuit Impedance 4% - 6%
Dielectric Strength As per IS/IEC standards
Degree of Protection IP23 / IP44
Service Location Indoor / Outdoor
Core Type CRGO silicon steel, three-limb construction
Noise Level <60 dB at 1 meter
Winding Insulation Class Class F / Class H

Dry Type Transformer Trade Information

Supply Ability 500 Unit Per Month
Delivery Time 30 Days

Product Description

Being a certified organization, we are engaged in manufacturing, supplying and exporting a wide range of Dry Type Transformer. Our offered transformers are used convert high voltage electrical current to low voltage electric current and vice versa, owing to which demanded across various industries and sectors. Available in different technical specifications, these transformers are widely praised. Our offered range of Dry Type Transformer is checked properly to ensure flawlessness.

Product Details

Voltage Ratio	11kV/433V
Brand	NGG Power Tech
Phase	Three Phase
Cooling Type	Dry Type/Air Cooled
Winding Material	Mild Steel
Power Rating	3MVA

High Performance and Safety Standards

Our dry type transformers adhere to stringent IS 11171 and IEC 60076 standards, ensuring high dielectric strength, impressive surge withstand capability, and an outstanding noise level below 60 dB at 1 meter. Coupled with Class F/Class H winding insulation and IP23/IP44 protection, the transformers are built to deliver safe, long-lasting performance in varied environments.

Flexible Installation and Operation

Designed for both indoor and outdoor installation, these transformers offer versatile mounting options and air-cooled operation. The off-circuit or optional OLTC tap changers allow for voltage regulation under different load conditions, ensuring reliable power distribution and adaptability to customer-specific requirements.

Customized Design and Application Range

With capacities from 100 kVA to 2500 kVA, these transformers feature customizable output voltages, robust three-phase operation, and can be configured with either copper or aluminum windings. Their construction ensures efficient, reliable power transfer suitable for industrial, commercial, and utility-scale applications.

FAQs of Dry Type Transformer:

Q: How do I select the appropriate dry type transformer for my application?

A: To select the right dry type transformer, determine your required capacity (1002500 kVA), voltage levels (11 kV/0.433 kV), installation environment (indoor or outdoor), and preferred features such as tap changer type or winding material. Our expert team can provide tailored recommendations based on your distribution needs and operational specifications.

Q: What benefits does Class F/H insulation provide in these transformers?

A: Class F and Class H insulation allows the transformer windings to handle higher temperatures (up to 100C hotspot), extending service life and reliability. This makes them ideal for demanding industrial environments where temperature resilience is crucial.

Q: When should I choose an on-load tap changer (OLTC) instead of an off-circuit tap changer?

A: An OLTC is suitable when voltage adjustments are needed while the transformer is energized and under load. Choose an off-circuit tap changer if manual voltage regulation is sufficient and can be done during maintenance intervals when the transformer is de-energized.

Q: Where can these dry type transformers be installed?

A: These transformers are designed for both indoor and outdoor use, thanks to their robust enclosure (IP23/IP44 protection) and adaptable mounting. They are ideal for facilities such as industries, commercial complexes, substations, and utility distribution points.

Q: What process is involved in manufacturing these transformers to meet IS/IEC standards?

A: Our manufacturing process includes sourcing high-grade silicon steel, precision winding of copper/aluminum coils, rigorous quality testing for dielectric and surge endurance, and assembly under strict performance standards (IS 11171/IEC 60076). Each transformer is uniquely configured and tested before shipment.

Q: How does air-cooled (AN/AF) technology benefit these transformers?

A: Air-cooled technology (using natural or forced air) provides effective and maintenance-friendly cooling, maintaining optimal operating temperatures without the need for liquid-based cooling systems. This reduces maintenance costs and enhances operational safety.

Q: What are the key advantages of using your dry type transformers for power distribution?

A: Key benefits include high efficiency (98%), robust safety and surge protection, adaptability for different mounting and locations, low operational noise, flexible voltage management, and compliance with global standards, ensuring reliable performance and long service life.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Dry Type Transformer' category

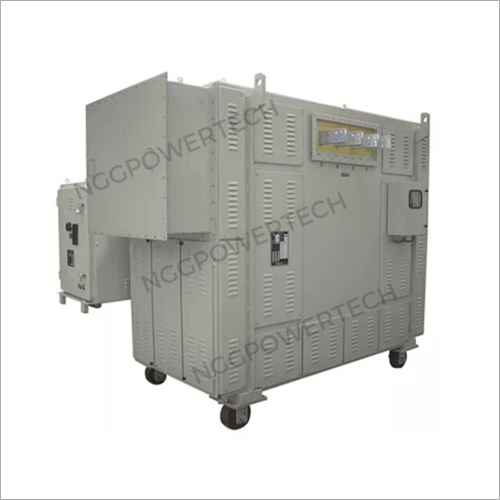

OLTC Resin Cast Transformer Price : 25000 INR/Unit Minimum Order Quantity : 1 Voltage Booster Type : Other, On Load Tap Changer (OLTC) Rated Voltage : 11 kV / 22 kV / 33 kV Operating Temperature : 25C to +45C Cooling Type : AN (Air Natural) Efficiency : 98% Output : Customized as per requirement Material : Epoxy Resin Cast Coil Material : Other , Copper/Aluminum Capacity : 100 kVA 2500 kVA High Voltage : Up to 33 kV Usage : Industrial, Power Distribution, Utilities Frequency (MHz) : 5060 Hz Coil Structure : Toroidal Product Type : Other, OLTC Resin Cast Transformer Phase : Three Phase Coil Number : Double Winding Weight : Approx. 2800 3200 kg Dimension (L*W*H) : Variable as per capacity (e.g., 2100 x 1500 x 1800 mm) Load Loss : As per IS 1180 Standard Power Scope : Distribution & Power Transmission Low Voltage : 0.4 kV
