Converter Duty Transformer

Name: Converter Duty Transformer
Brand: NGG POWER TECH INDIA PRIVATE LIMITED
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Rated Voltage Up to 33 kV
Capacity Upto 20 MVA
Low Voltage 0.415 to 11 kV
Load Loss As per IS2026 Standards
Dimension (L*W*H) Customized as per design
High Voltage Up to 33 kV
Coil Material Copper / Aluminium
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Converter Duty Transformer Price And Quantity

Price 25000 INR/Unit
Minimum Order Quantity 1 Unit

Standards IS 2026, IEC 60076, or as required
Core Type Laminated Core
Mounting Type Floor Mounted
Paint Epoxy Powder Coated, Anti-Corrosion
Tapping Range 5% or as required
Dielectric Strength Compliant with IS/IEC norms
Protection Buchholz Relay, Oil Level Indicator, Temperature Gauge
Impedance 4-10% as per application
Noise Level <60 dB at 1 meter distance
Insulation Class Class F / Class H

Converter Duty Transformer Product Specifications

Frequency (MHz) 50 Hz
Rated Voltage Up to 33 kV
Weight Approx. 3-20 Tons (Depends on rating)
High Voltage Up to 33 kV
Capacity Upto 20 MVA
Dimension (L*W*H) Customized as per design
Phase Three Phase
Coil Structure Toroidal and layered
Output Custom as per requirement
Usage Rectifier and power electronic applications requiring stable DC output
Material High-grade CRGO silicon steel core with copper/aluminium windings
Low Voltage 0.415 to 11 kV
Product Type Converter Duty Transformer
Operating Temperature Up to 50C
Load Loss As per IS2026 Standards
Cooling Type ONAN / ONAF / OFAF
Coil Number Double Winding
Efficiency 99%
Coil Material Copper / Aluminium
Power Scope Upto 20 MVA

Standards IS 2026, IEC 60076, or as required
Core Type Laminated Core
Mounting Type Floor Mounted
Paint Epoxy Powder Coated, Anti-Corrosion
Tapping Range 5% or as required
Dielectric Strength Compliant with IS/IEC norms
Protection Buchholz Relay, Oil Level Indicator, Temperature Gauge
Impedance 4-10% as per application
Noise Level <60 dB at 1 meter distance
Insulation Class Class F / Class H

Converter Duty Transformer Trade Information

Supply Ability 500 Unit Per Month
Delivery Time 30 Days

Product Description

There is a Converter Duty Transformer offered by us that is also called as solar application transformer. These transformers are usually used in solar power applications, where the power from inverter is stepped up and put to the power grid. Most of the solar operated power plants include a converter duty transformer in their voltage/power transfer cycle. It is a special purpose transformer also called as solar transformer. The duty transformers are used as step up transformer in solar power generation plants. The offered Converter Duty Transformer is made for use in the various places.

Product Details of Converter Duty Transformer :

Minimum Order Quantity	1 Piece
Voltage Rating	upto 66kv
Usage/Application	Industrial
Cooling Type	Oil Cooled
Phase	Three Phase
Power	10kVA
Country of Origin	Made in India
Winding Material	Copper and Aluminium

Superior Efficiency and Performance

This transformer delivers outstanding energy efficiency with up to 99% output, minimizing operational losses. Its design ensures minimal noise (<60 dB at 1 meter) and delivers a stable, reliable power supply crucial for sensitive rectifier and power electronic equipment. Advanced insulation and cooling options support safe operation even under challenging conditions.

Robust Build and Flexible Customization

Built using a high-grade CRGO silicon steel core and available with copper or aluminium windings, the device is designed for longevity and dependability. Epoxy powder coating provides durable anti-corrosion properties. From voltage ratings up to 33 kV to various mounting and dimensional configurations, every transformer is engineered to fit unique application and site requirements.

FAQs of Converter Duty Transformer:

Q: How is the impedance range of 4-10% advantageous in converter duty transformers?

A: The 4-10% impedance range offers flexibility, helping limit fault currents and improving voltage regulation. This range also minimizes harmonics and provides optimal performance for rectifier and power electronic applications.

Q: What applications are most suited for this transformer?

A: This transformer is ideal for rectifiers and similar power electronic applications that demand stable DC output, such as steel plants, chemical industries, and any industrial process needing precise control over power quality.

Q: When should I specify the tapping range or request a customized tapping option?

A: Tapping range (5% or as required) should be discussed when your application needs voltage adjustment to accommodate fluctuating grid or load conditions, ensuring your processes maintain consistent output.

Q: Where can this transformer be installed, and what is its mounting type?

A: The transformer is designed as floor-mounted equipment and can be installed in designated electrical rooms or substations, typically in manufacturing, power generation, or processing plants across India and for export.

Q: What is the manufacturing process for this converter duty transformer?

A: Manufacturing involves precision assembly of a laminated CRGO silicon steel core, winding of copper or aluminium coils in toroidal or layered formats, application of high-grade insulation, and rigorous testing per IS 2026/IEC 60076. Custom features are integrated as specified.

Q: How does the protection system ensure safe operation?

A: The transformer features safety systems like a Buchholz relay, oil level indicator, and temperature gauge to quickly detect abnormal conditions, minimizing the risk of equipment failure and ensuring reliable operation.

Q: What are the main benefits of choosing this converter duty transformer for my facility?

A: Selecting this transformer delivers high efficiency, adaptability to custom requirements, durable anti-corrosion protection, robust safety features, and consistent performanceenhancing the reliability and effectiveness of your power conversion processes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Industrial Transformer' category

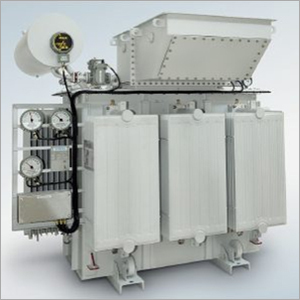

20 MVA Converter Duty Transformer Price : 27000000.00 INR/Unit Minimum Order Quantity : 1 Output : 20,000 kVA Coil Structure : Other, Double Wound Dimension (L*W*H) : 6500 mm x 3000 mm x 4200 mm Phase : Three Phase Capacity : 20 MVA High Voltage : 132 kV Weight : Approx. 45,000 kg Frequency (MHz) : 50 Hz (0.05 MHz) Rated Voltage : 33 kV / 132 kV Power Scope : 20 MVA Coil Material : Other , Super Enameled Copper Coil Number : Other, Three (One per Phase) Efficiency : About 99.4% Cooling Type : ONAN / ONAF (Oil Natural Air Natural / Oil Natural Air Forced) Product Type : Other, Converter Duty Transformer Load Loss : Max 65 kW Low Voltage : 33 kV Operating Temperature : 10C to +45C Material : Highgrade Cold Rolled Grain Oriented (CRGO) Silicon Steel Usage : Industrial converter stations, HVDC, Renewable grid integration Voltage Booster Type : Other, Tap Changer (OLTC)
